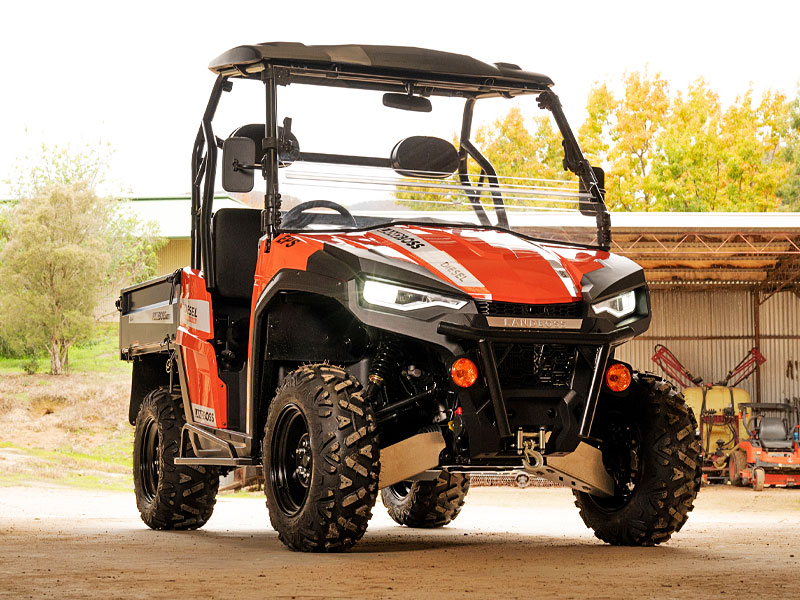

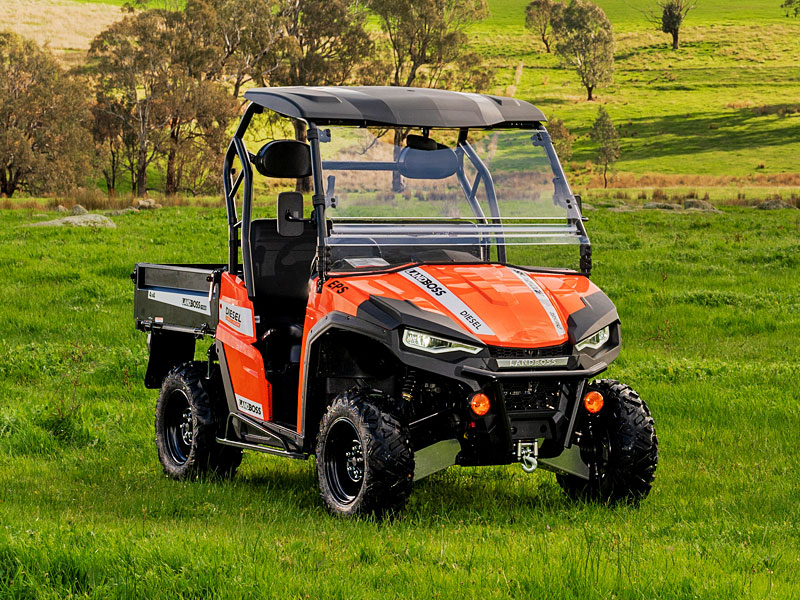

Powered by a Kubota engine (diesel) the Landboss 1100D is ready to work. With a higher top speed of 60kmh (impressive for a diesel UTV) and bigger tow and carry capacities over the Landboss 800D, the Landboss 1100D will get the job done quick smart.
Durable design matched with serious 4WD capability, including downhill descent control, the Landboss 1100D is well suited to tackle our harsh Australian working conditions. Now with Landboss roof kit, full poly tilt screen and 4500lb winch as standard.
When it comes to hard work, take charge with Landboss.
*National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes regional WA dealers.
Right-Hand Drive
Right-hand-drive configuration offers familiar controls and improved ease of operation.
Kubota Diesel Power
Reliable 24.8hp Kubota three-cylinder diesel engine delivers strong performance and excellent fuel efficiency.
60km/h Top Speed
Capable of reaching speeds of up to 60km/h for efficient transport across large properties and work sites.
Canadian CVTech Transmission
Durable CVTech transmission provides smooth and reliable power delivery in demanding conditions.
Electronic Power Steering
Electronic power steering reduces driver fatigue and improves manoeuvrability in all terrains.
Downhill Descent Control
Helps maintain controlled vehicle speeds on steep descents for increased confidence and safety.
Selectable Drive Modes
Selectable 2WD/4WD with front and rear differential lock plus turf mode delivers maximum versatility.
Heavy-Duty Wheels and Tyres
26-inch four-ply tyres mounted on durable 14-inch black steel wheels provide excellent traction and durability.

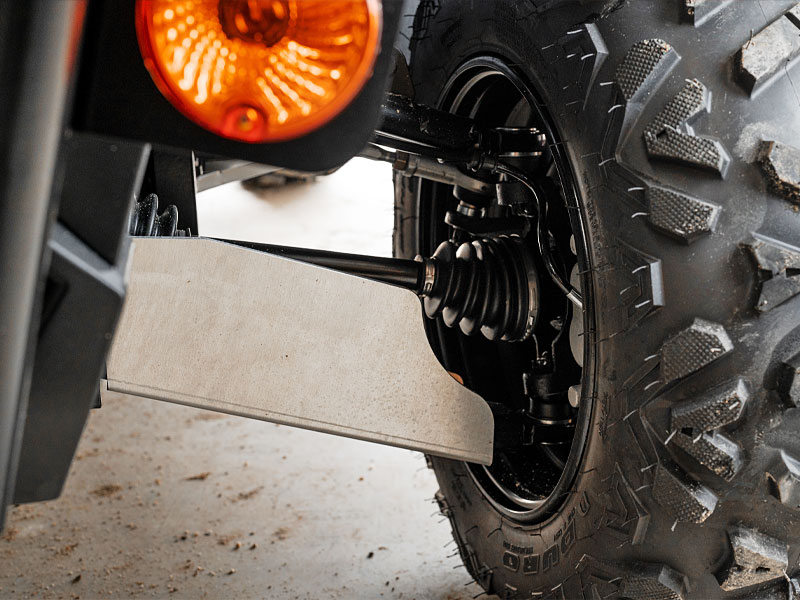

Independent Suspension
Dual A-arm independent front and rear suspension delivers superior comfort and confident handling.
Heavy-Duty Towing Capability
Front and rear tow points allow the vehicle to tow loads up to 800kg with ease.

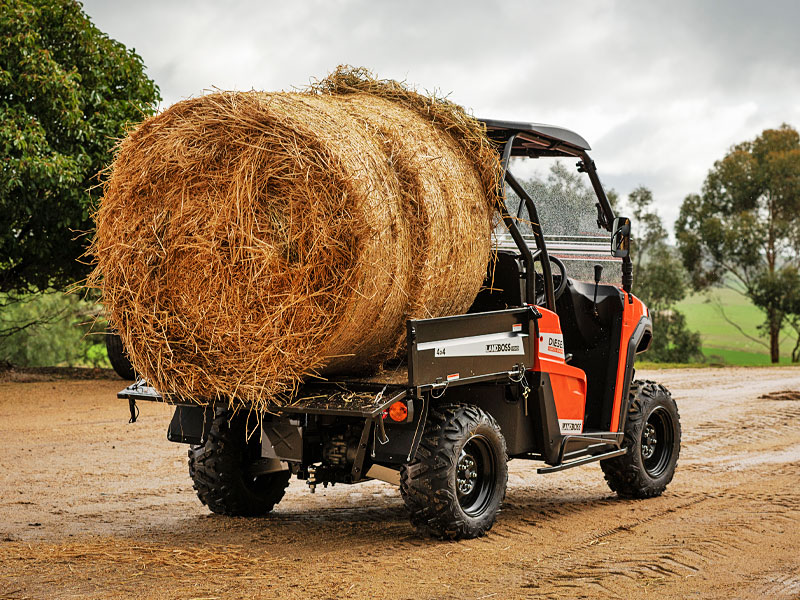

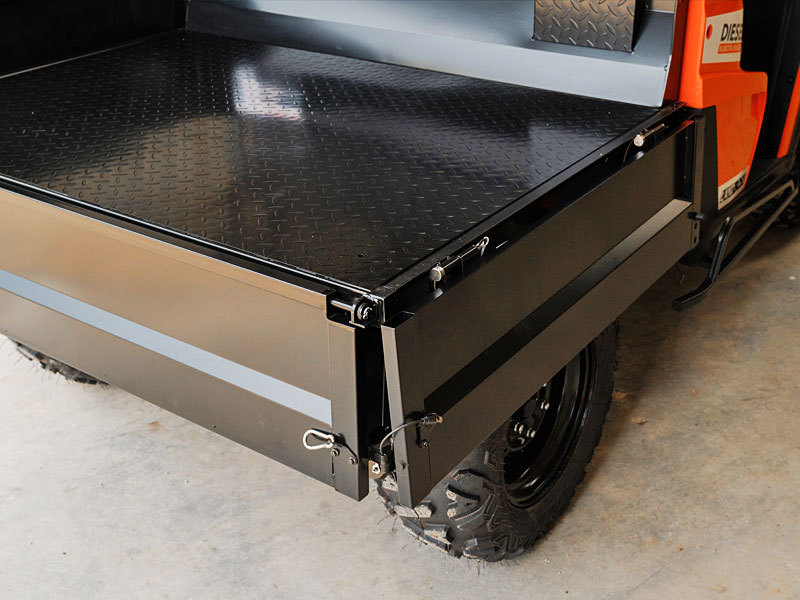

Steel Tip Tray
Steel tipping cargo tray features removable drop-down sides and a generous 500kg payload capacity.
Enhanced Safety Features
Reverse beeper, three-person bench seat and seat belts help provide a safer operating environment.
ROPS-Certified Roll Frame
ROPS-certified roll frame provides increased occupant protection in demanding conditions.
Steel Side Steps
Durable steel side steps make entering and exiting the vehicle easier while adding protection.

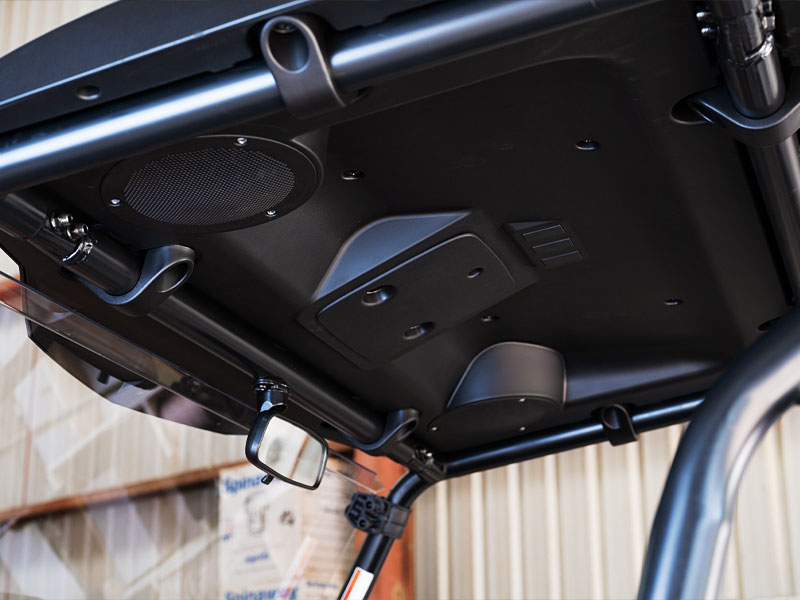

Roof Kit
Integrated roof provides protection from the elements for greater operator comfort.

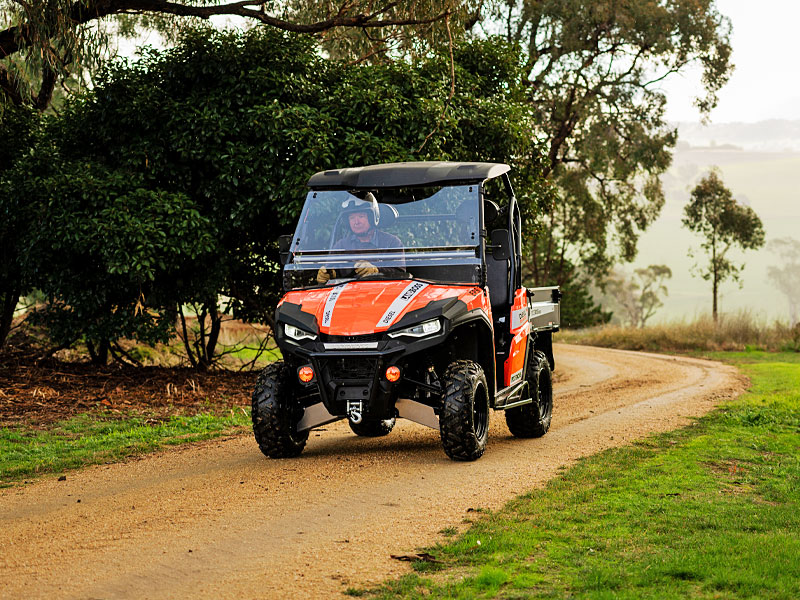

Poly Split Windscreen
Polycarbonate split windscreen helps shield occupants from wind, dust and debris.
4500lb Winch
Heavy-duty 4500lb winch provides reliable recovery assistance when tackling difficult terrain.
Complete Equipment Package
Lighting system, horn and mirrors are included as standard equipment.
Available in Orange
Finished in a high-visibility orange colour for a distinctive appearance.
Factory Warranty
Two-year parts and labour warranty provides added peace of mind and ownership confidence.
| Engine | 24.8 hp, In Line 3 Cylinder, Water Cooled Kubota Diesel |
| Engine Model | Kubota D1105-E3B |
| Cooling | Liquid Cooled |
| Bore x stroke | 78mm x 78.4mm |
| Compression ratio | 24:1 |
| Maximum Torque | 72Nm @ 3000rpm |
| Starter System | Electric |
| Battery/AMP Hour | 12Volt, 45Ah |
| Lubrication System | Forced Feed |
| Transmission | CVTech High / Low / Neutral / Reverse, 2WD / 4WD, Front & Rear Differential Lock, Turf Mode & Downhill Descent Control |
| Clutch | Constant Variable Transmission (CVT) |
| Final Drive | Shaft Drive |
| Front Brakes | Hydraulic Disc |
| Rear Brakes | Hydraulic Disc |
| Parking Brake | Handbrake |
| Steering | Electronic Power Steering (EPS) |
| Drive | Right Hand Drive (RHD) |
| Front Suspension | Dual A-Arm Coil Over Shock |
| Rear Suspension | Dual A-Arm Coil Over Shock (IRS) |
| Tyres (front/rear) | 26x9x14 / 26x11x14 |
| Wheels | Steel, Front 14×9 / Rear 14×11 |
| Dimensions (L/W/H) | 3018mm / 1520mm / 1905mm |
| Wheel Base | 1,930mm |
| Distance between Wheels | 990mm |
| Ground Clearance | 240mm |
| Dry Weight | 750kg |
| Fuel Capacity | 35 litres |
| Cargo Box Capacity | 500kg |
| Rear Tray (L/W/H) | 1020mm / 1470mm / 400mm |
| Towing Capacity | 800kg |
| Warranty | 2 Years Parts & Labour |
| Standard Features | Roof kit, full-length poly split windscreen & winch |
