Purpose built for the Aussie market in right hand drive, the Landboss 800D diesel UTV is ready to work.
Tough steel chassis, powered by a dependable Kubota diesel engine and equipped with a large steel tipper tray with removable drop down sides to cater for all occasions.
Durable, Dependable and ready to work. Landboss.
Landboss 800D does not come with a winch. Note gallery images of the vehicle display a winch, which can be purchased as an optional extra. National ride away prices are inclusive of freight to your local dealer and dealer pre-delivery charges. Excludes Regional WA dealers.
New Look 800D Styling

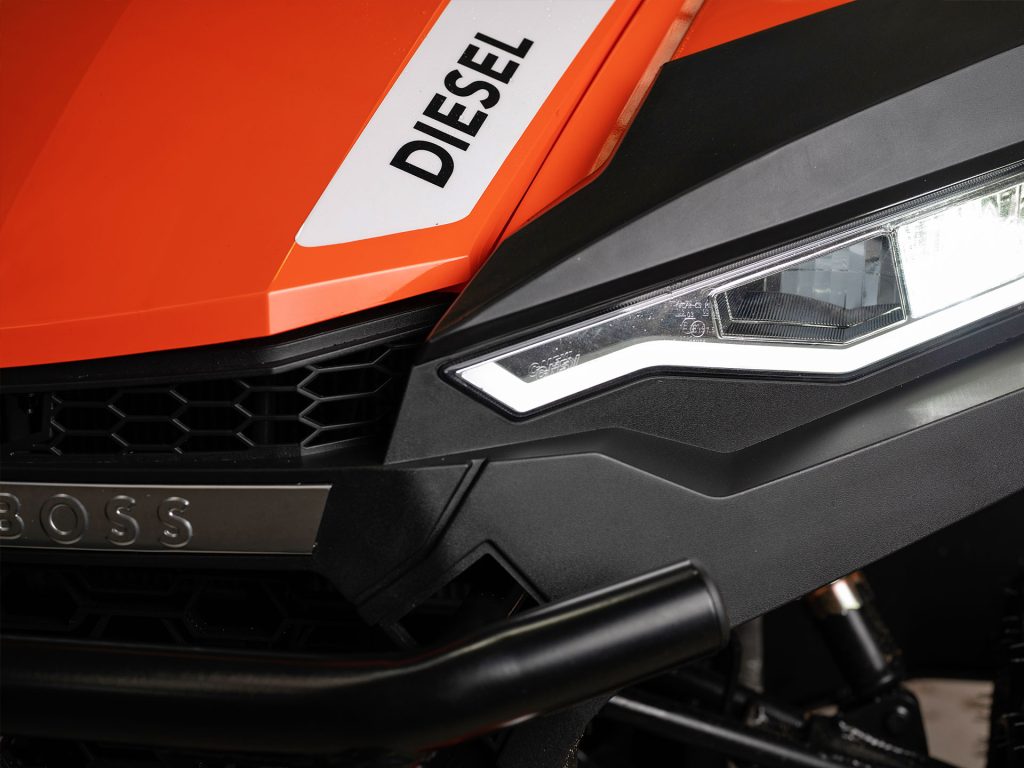

Updated front-end styling gives the MXU 800D a modern appearance while maintaining its rugged functionality.
Full-Length Windscreen
Full-length poly windscreen provides enhanced protection from wind, dust and the elements.
Right-Hand Drive
Right-hand-drive configuration offers familiar controls and improved ease of operation.
Kubota Diesel Power
Reliable 19.3hp Kubota three-cylinder diesel engine delivers dependable performance and excellent fuel efficiency.
45km/h Top Speed
Capable of reaching 45km/h for efficient travel across large properties and work sites.
Canadian CVTech Transmission
Durable CVTech transmission provides smooth and reliable power delivery in demanding conditions.
Electronic Power Steering (EPS)
Electronic power steering reduces driver fatigue and improves manoeuvrability in all terrains.
Selectable Drive Modes
Selectable 2WD/4WD with front and rear differential lock plus turf mode delivers maximum versatility.
Heavy-Duty Wheels and Tyres
26-inch 4-ply tyres mounted on durable 14-inch black steel wheels provide excellent traction and durability.
Independent Suspension
Dual A-arm independent front and rear suspension delivers superior comfort and confident handling.
Heavy-Duty Towing Capability
Front and rear tow points allow the vehicle to tow loads up to 600kg with ease.

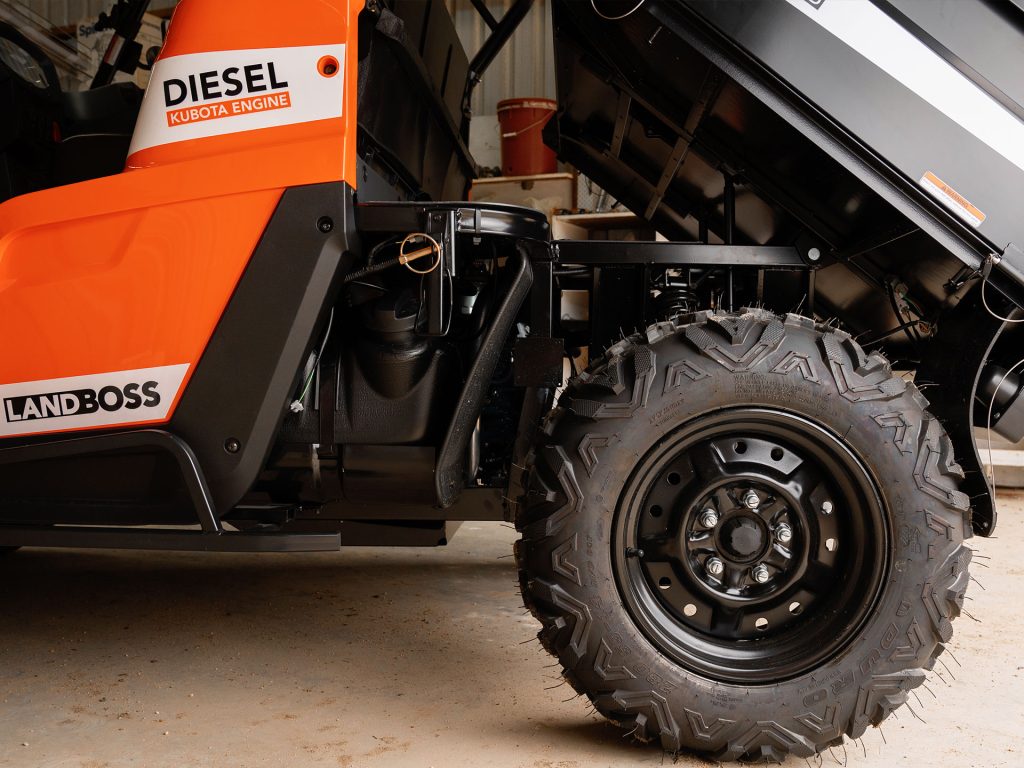

Steel Tip Tray
Steel tipping cargo tray features removable drop-down sides and a generous 450kg payload capacity.
Enhanced Safety Features

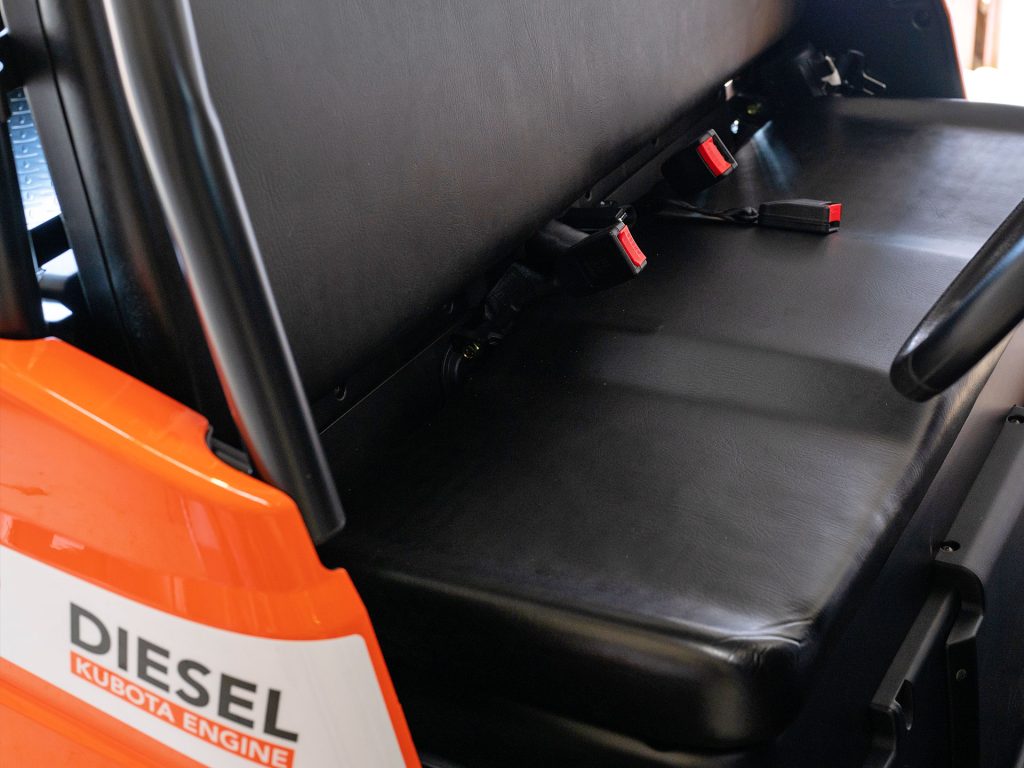

Reverse beeper, three-person bench seat and seat belts help provide a safer operating environment.
ROPS Certified Roll Frame
ROPS-certified roll frame provides increased occupant protection in demanding conditions.
Roof Kit
Integrated roof provides protection from the elements for greater operator comfort.
Complete Equipment Package
Lighting system, horn and side mirrors are included as standard equipment.
Available in Orange
Finished in a high-visibility orange colour for a distinctive appearance.
Factory Warranty
Two-year parts and labour warranty provides added peace of mind and ownership confidence.
| Engine Type | 19.3 hp, In Line 3 Cylinder, Water Cooled Kubota Diesel |
| Engine Model | Kubota D782-E3B |
| Cooling | Liquid Cooled |
| Bore x stroke | 67 x 73.6 mm |
| Compression ratio | 24:1 |
| Maximum Torque | 49 Nm @ 2400 rpm |
| Starter System | Electric |
| Battery/AMP Hour | 12Volt, 45Ah |
| Lubrication System | Forced Feed |
| Transmission | CVTech High / Low / Neutral / Reverse, 2WD / 4WD, Front & Rear Differential Lock |
| Clutch | Constant Variable Transmission (CVT) |
| Final Drive | Shaft Drive |
| Front Brakes | Hydraulic Disc |
| Rear Brakes | Hydraulic Disc |
| Parking Brake | Handbrake |
| Steering | Electronic Power Steering (EPS) |
| Drive | Right Hand Drive (RHD) |
| Front Suspension | Dual A-Arm Coil Over Shock |
| Rear Suspension | Dual A-Arm Coil Over Shock (IRS) |
| Tyres (front/rear) | 26x9x14 / 26x11x14 |
| Wheels | Steel, Front 14×9 / Rear 14×11 |
| Dimensions (L/W/H) | 3018mm / 1520mm / 1905mm |
| Wheel Base | 1,930mm |
| Distance between Wheels | 990mm |
| Ground Clearance | 240mm |
| Dry Weight | 700kg |
| Fuel Capacity | 35 litres |
| Cargo Box Capacity | 450kg |
| Rear Tray (L/W/H) | 1020mm / 1470mm / 400mm |
| Towing Capacity | 600kg |
| Warranty | 2 Years Parts & Labour |
| Colour | Orange |
| Standard Features | Roof kit & full-length poly windscreen |
